#include <TTopicDescription.hpp>

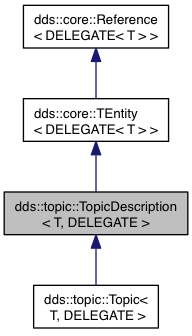

Inheritance diagram for dds::topic::TopicDescription< T, DELEGATE >:

Public Types
typedef T	DataType

Public Member Functions
virtual	~TopicDescription ()

const dds::domain::DomainParticipant &	domain_participant () const

const std::string &	name () const

const std::string &	type_name () const

Public Member Functions inherited from dds::core::TEntity< DELEGATE< T > >
	~TEntity ()

void	close ()

void	enable ()

const dds::core::InstanceHandle	instance_handle () const

void	retain ()

const dds::core::status::StatusMask	status_changes ()

Public Member Functions inherited from dds::core::Reference< DELEGATE< T > >
	Reference (dds::core::null_type &)

	Reference (const Reference &ref)

	Reference (const Reference< D > &ref)

	Reference (DELEGATE_T *p)

	~Reference ()

const DELEGATE_REF_T &	delegate () const

DELEGATE_REF_T &	delegate ()

bool	is_nil () const

	operator const DELEGATE_REF_T & () const

	operator DELEGATE_REF_T () const

	operator DELEGATE_REF_T & ()

bool	operator!= (const R &ref) const

bool	operator!= (const null_type nil) const

DELEGATE< T > *	operator-> ()

const DELEGATE< T > *	operator-> () const

Reference &	operator= (const Reference< D > &that)

Reference &	operator= (const R &rhs)

Reference &	operator= (const null_type)

bool	operator== (const R &ref) const

bool	operator== (const null_type) const

Protected Member Functions
	TopicDescription (const dds::domain::DomainParticipant &dp, const std::string &name, const std::string &type_name=dds::topic::topic_type_name< T >::value())

Additional Inherited Members
Protected Attributes inherited from dds::core::Reference< DELEGATE< T > >
DELEGATE_REF_T	impl_

Detailed Description

template<typename T, template< typename Q > class DELEGATE>
class dds::topic::TopicDescription< T, DELEGATE >

TopicDescription represents the fact that both publications and subscriptions are tied to a single data-type. Its attribute type_name defines a unique resulting type for the publication or the subscription and therefore creates an implicit association with a TypeSupport. TopicDescription has also a name that allows it to be retrieved locally.

Definition at line 41 of file TTopicDescription.hpp.
